方波、三角波、正弦波发生器设计VHDL代码Quartus仿真

名称：方波、三角波、正弦波发生器设计VHDL代码Quartus仿真

软件：Quartus

语言：VHDL

代码功能：

方波、三角波、正弦波发生器VHDL

1、使用VHDL设计波形发生器

2、可以控制输出输出正弦、方波、三角波

3、通过频率控制字控制输出波形频率

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

演示视频：

设计文档：

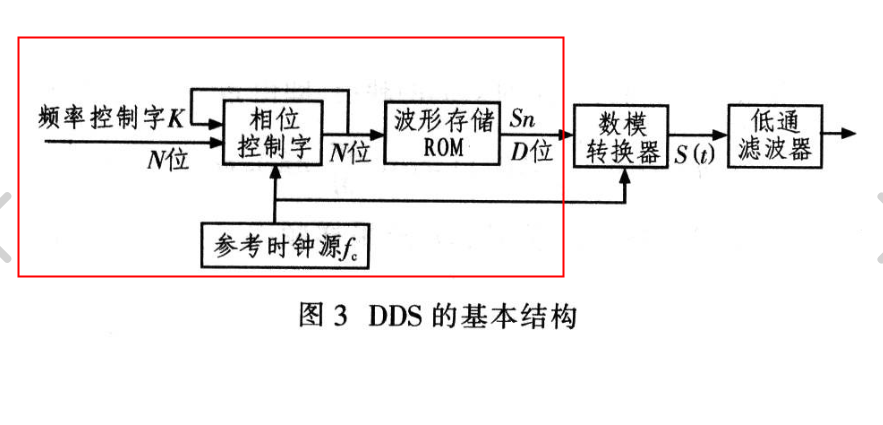

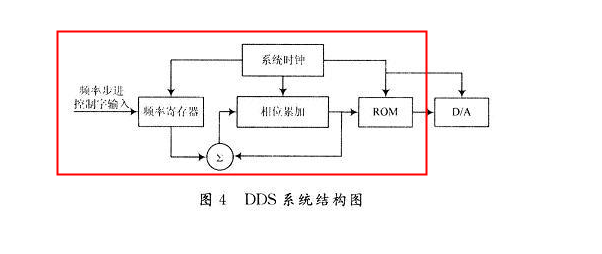

DDS原理

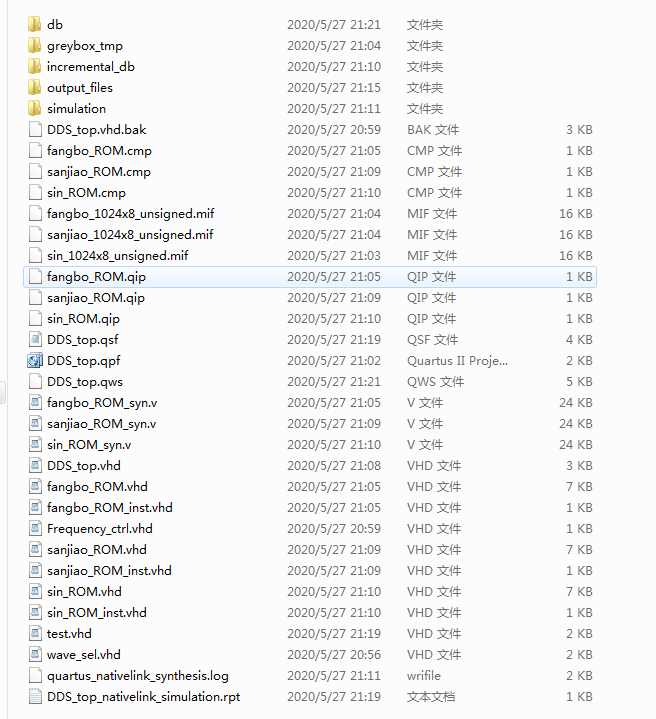

1. 工程文件

2. 程序文件

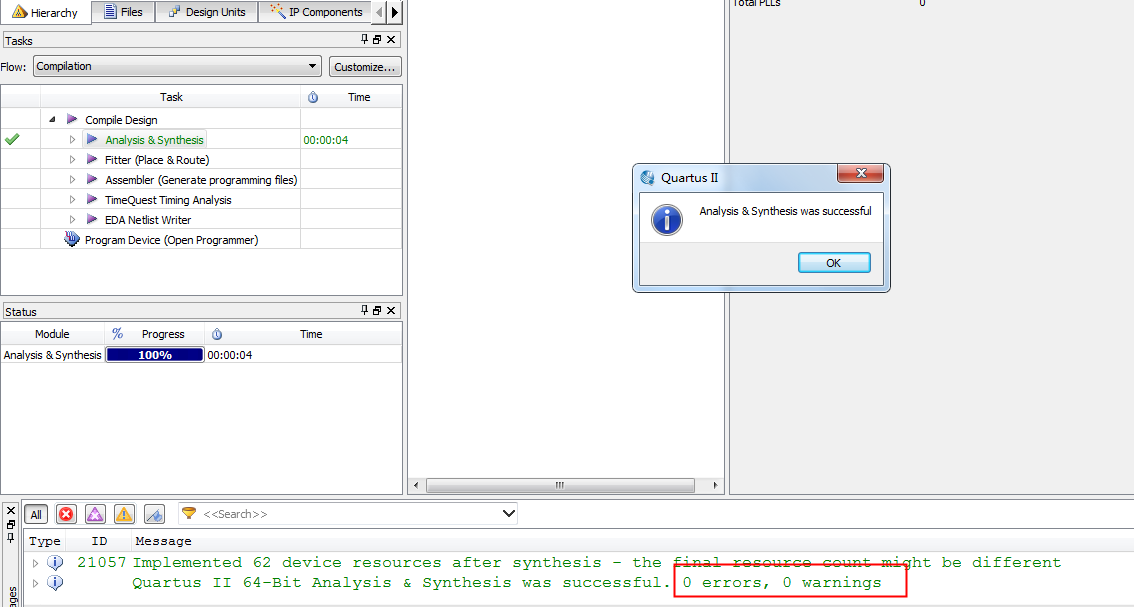

3. 程序编译

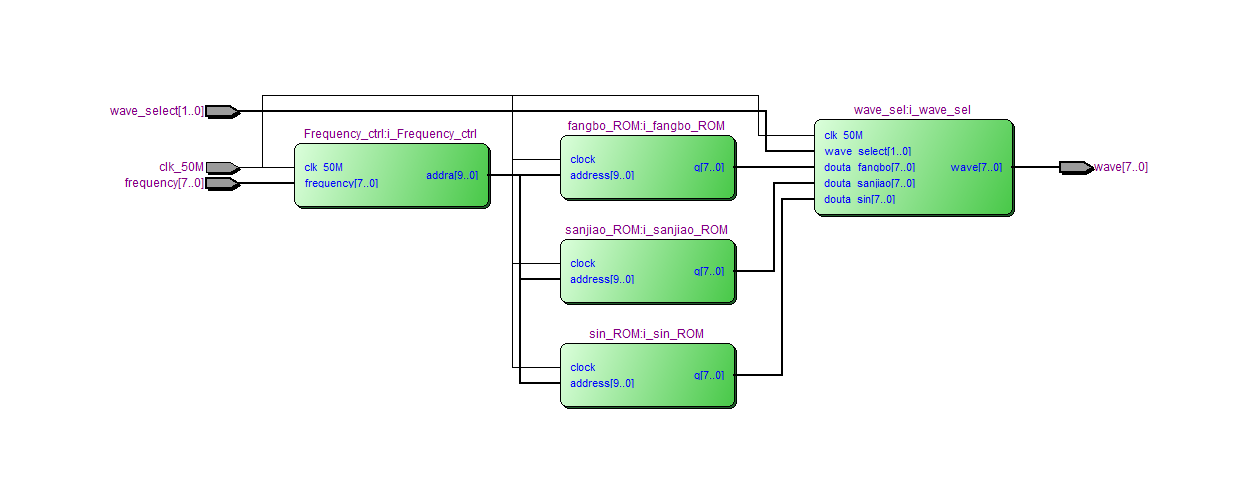

4. RTL图

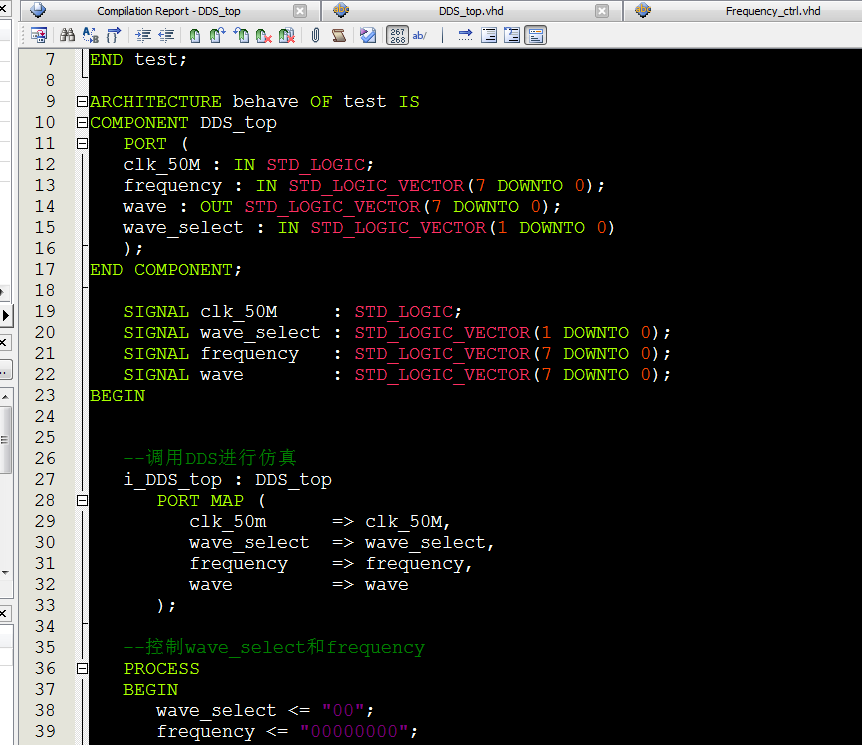

5. Testbench

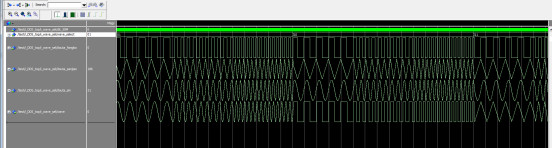

6. 仿真图

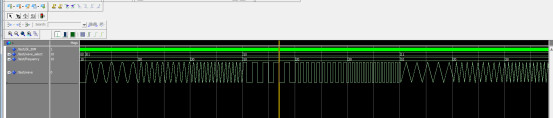

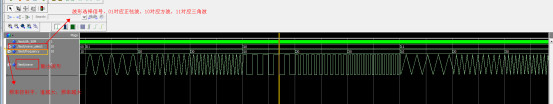

整体仿真图

相位累加器模块

波形选择模块

正弦波ROM

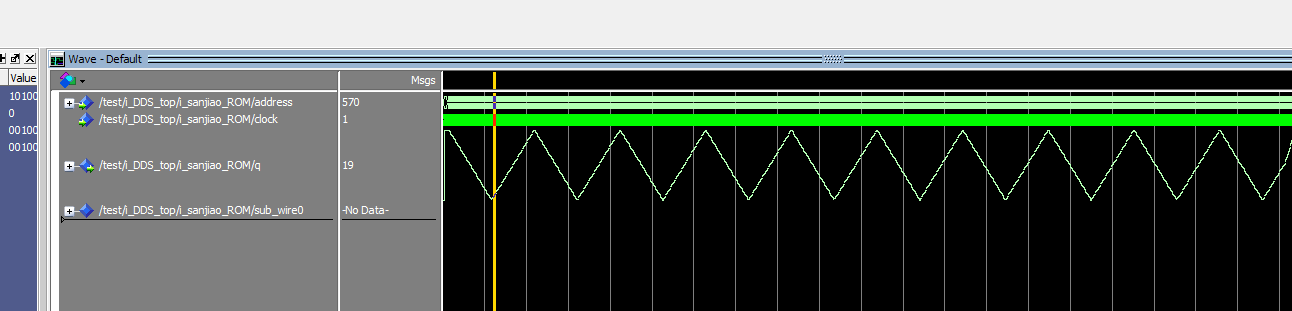

三角波ROM

方波ROM

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
ENTITY?DDS_top?IS
???PORT?(
??????clk_50M??????:?IN?STD_LOGIC;
??????wave_select??:?IN?STD_LOGIC_VECTOR(1?DOWNTO?0);--01输出sin，10输出方波，11输出三角波
??????frequency????:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);--频率控制字，控制输出波形频率，值越大，频率越大
??????wave?????????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)--输出波形
???);
END?DDS_top;
ARCHITECTURE?behave?OF?DDS_top?IS
--例化模块
???COMPONENT?wave_sel?IS
??????PORT?(
?????????clk_50M??????:?IN?STD_LOGIC;
?????????wave_select??:?IN?STD_LOGIC_VECTOR(1?DOWNTO?0);
?????????douta_fangbo?:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????douta_sanjiao?:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????douta_sin????:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????wave?????????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)
??????);
???END?COMPONENT;
???
???COMPONENT?Frequency_ctrl?IS
??????PORT?(
?????????clk_50M??????:?IN?STD_LOGIC;
?????????frequency????:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????addra????????:?OUT?STD_LOGIC_VECTOR(9?DOWNTO?0)
??????);
???END?COMPONENT;
COMPONENT?sin_ROM?IS
PORT
(
address:?IN?STD_LOGIC_VECTOR?(9?DOWNTO?0);
clock:?IN?STD_LOGIC??:=?'1';
q:?OUT?STD_LOGIC_VECTOR?(7?DOWNTO?0)
);
END?COMPONENT;
COMPONENT?fangbo_ROM?IS
PORT
(
address:?IN?STD_LOGIC_VECTOR?(9?DOWNTO?0);
clock:?IN?STD_LOGIC??:=?'1';
q:?OUT?STD_LOGIC_VECTOR?(7?DOWNTO?0)
);
END?COMPONENT;
COMPONENT?sanjiao_ROM?IS
PORT
(
address:?IN?STD_LOGIC_VECTOR?(9?DOWNTO?0);
clock:?IN?STD_LOGIC??:=?'1';
q:?OUT?STD_LOGIC_VECTOR?(7?DOWNTO?0)
);
END?COMPONENT;
???
???SIGNAL?addra?????????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?douta_fangbo??:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?douta_sanjiao?:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?douta_sin?????:?STD_LOGIC_VECTOR(7?DOWNTO?0);

点击链接获取代码文件：http://www.hdlcode.com/index.php?m=home&c=View&a=index&aid=1263
